Bringing Your Water Heater Up to Code: What It Means & Why It Matters

Whether you’re replacing an old water heater or installing a new one, bringing it up to code isn’t just a box to check — it’s about keeping your home safe, efficient, and protected. Plumbing and mechanical codes exist to prevent accidents, extend equipment life, and ensure your system performs as it should.

Here are the most important code requirements for water heater installations — and why each one matters.

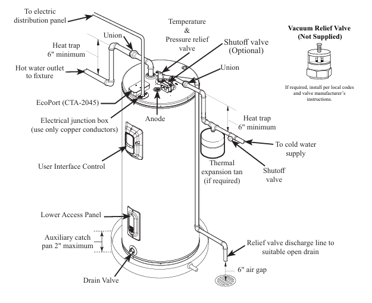

📏 Key Water Heater Code Requirements

1. Temperature & Pressure Relief (T&P) Valve

• What it is: A safety valve that automatically releases water if the internal temperature or pressure becomes too high.
• Why it matters: Prevents catastrophic tank explosions. Proper discharge piping ensures water exits safely without causing injury or damage.

2. Thermal Expansion Tank

• What it is: A small tank installed on the cold water supply line to absorb pressure created as water heats and expands.
• Why it matters: Prevents excessive pressure buildup that can damage your plumbing system, water heater, and fixtures — especially in homes with backflow prevention or pressure-reducing valves.

3. Gas Sediment Trap (Drip Leg)

• What it is: A short capped pipe section installed on the gas line before the water heater’s gas control valve.
• Why it matters: Captures debris and moisture from the gas line, protecting the burner assembly and preventing performance issues or pilot light failures.

4. Proper Venting

• What it is: Correctly sized and installed venting that directs combustion gases (like carbon monoxide) safely outside.
• Why it matters: Prevents dangerous backdrafting and protects your home from deadly carbon monoxide exposure.

5. Drain Pan and Drain Line (for Indoor Installations)

• What it is: A pan under the water heater with a drain line to an approved discharge point.
• Why it matters: Protects your floors, walls, and foundation from water damage in the event of a leak.

6. Clearance and Combustion Air

• What it is: Proper spacing around the water heater and adequate airflow for combustion.
• Why it matters: Prevents unsafe operation, ensures efficiency, and allows proper servicing.

7. Cold Water Shut-Off Valve (Ball Valve)

• What it is: A code-required shut-off valve on the cold water supply line feeding the water heater.
• Why it matters: Allows you or a technician to quickly stop water flow to the tank in an emergency, during maintenance, or when replacing the unit. Ball valves are preferred because they offer full-flow shutoff and reliable operation with a simple quarter-turn handle.

8. Electrical Disconnect Box (for Electric or Hybrid Units)

• What it is: A service disconnect within sight of the water heater, required by the National Electrical Code (NEC) for electric-powered units.
• Why it matters: Ensures the unit can be safely powered down during service or emergencies. It protects both the technician and your electrical system from accidental shocks or arc faults during maintenance.

🛠️ Why “Up to Code” Is Non-Negotiable

• ✅ Safety: Most dangerous water heater failures — from fires to explosions — are caused by improper installation.
• 💧 Longevity: A properly installed and code-compliant unit lasts longer and operates more efficiently.
• 📜 Insurance & Permits: Non-compliant installations can void your homeowner’s insurance and fail city inspections.
• 🏠 Resale Value: Homes with properly installed water heaters pass inspections easily and retain higher value.
